Construction Structure High Speed CNC Plate Drill Machine For Flanges 1000*1000mm

Ask Lasest Price
Brand Name :	FAST
Model Number :	PZG1010
Certification :	ISO9001
Price :	24900~26900USD
Payment Terms :	L/C, T/T
Supply Ability :	300sets
Delivery Time :	90days

Add to Cart

Product Details
Company Profile

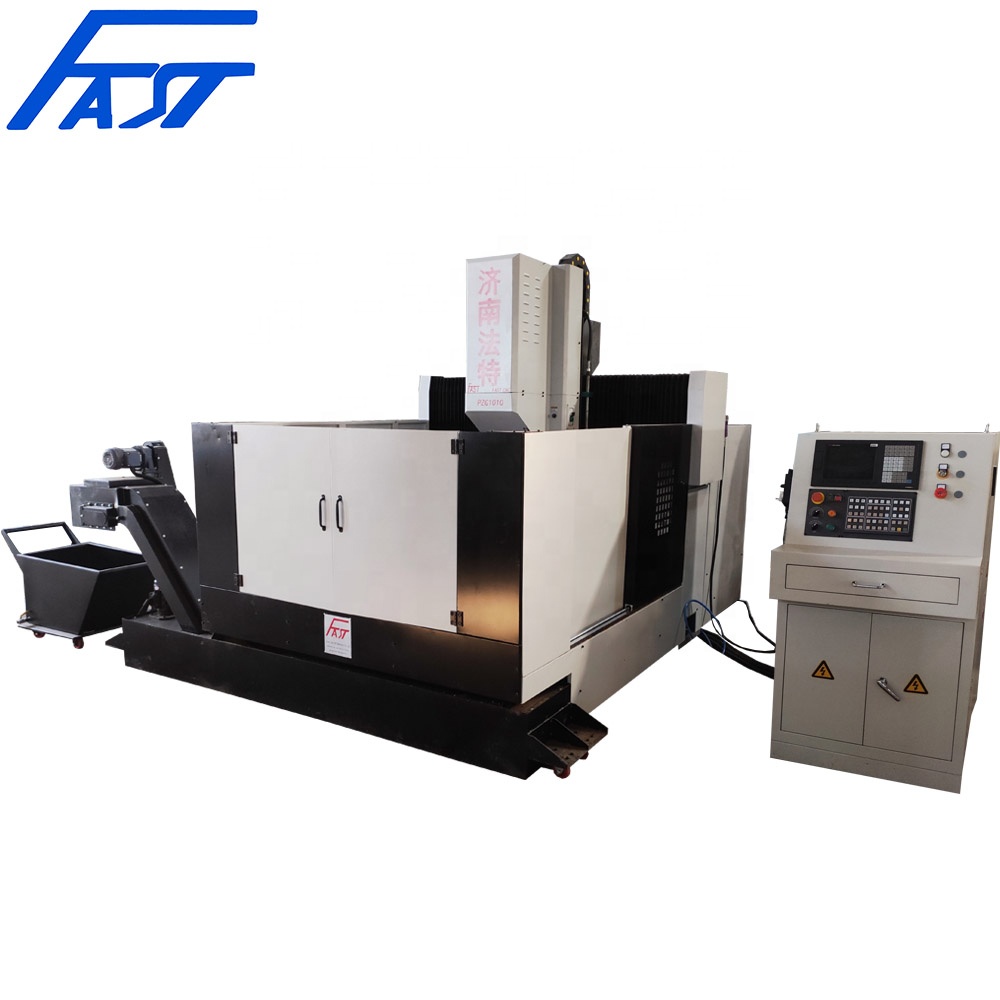

Construction Structure High Speed CNC Plate Drill Machine For Flanges 1000*1000mm

PZG1010-BT50 Factory Sale 1000*1000mm CNC Flange Drilling Milling Machine For Bolier Flange Plate

A PZG1010 4

APPLICATION

The machine is mainly used for drilling, milling, chamfering and tapping on flanges, tubesheets, and machine bases. Internal cooling high-speed drilling with carbide milling cutters or external cooling drilling with ordinary high-speed steel twist drills, end mills can also be used to mill grooves and special tools are used to mill the expansion grooves of the tube holes of the tubesheet. The machining process of the machine is digitally controlled. The operation is very convenient. It can realize automation, high precision, multi-variety and mass production.

TECHNICAL DATA

PZG1010 Technical Data

Name	Specification
Mode	Gantry type
Table size (L*W)	*13001100mm**
Max. workpiece size (L*W)	*10001000mm**
Distance between the bottom of the spindle to work table	230~630mm
Processing Capability
Max. Drilling Depth	250mm
Max. Drilling Diameter	60mm
Milling Diameter	Milling cutter head diameter 100mm
Drilling Power Head
Type of Power Head	BT50 servo control power head
Quantity	1
Type of Clamp	Butterfly spring pull rod device (air pressure tool)
Spindle Technical Data
Spindle Power	15kW
Spindle Rotating Speed	30~3000r/min
Type of Connection mold of spindle	BT50
Longitudinal movement X Axis
Max. Stroke	1000mm
Speed of X axis	0~8000mm/min
Servo motor power of X axis	2.3kW
Transverse movement of Y Axis
Max Stroke	1000mm
Speed of Y axis	0~8000mm/min
Servo motor power of Y axis	2.3kW
Vertical Stroke of Z Axis
Max. Stroke	400mm
Feeding Speed of Z axis	0~5000mm./min
Servo motor power of Z axis	2.3kW (With brake)
CNC Axes	4 Axes
Machine Accuracy
Positioning Accuracy	<0.05mm
Re-positioning Accuracy	≤0.04mm
Verticality of Spindle to work table	≤0.03mm
Run out of the bottom of spindle and the side spindle	≤0.02 mm
Pneumatic system pressure	0.6MPa
Lubrication system pressure	1.0MPa
Cooling system & filter system
Power	5kW
Flue	50L/min
Accuracy	20μm
Inner Cooling System Max. Pressure	5.0MPa
Out cooling system pressure	0.2MPa
*Outline dimension(LWH)*	320020002600 mm
Total Power	Appx.30kW
Net Weight	Approx. 5T

DETAIL IMAGES

A PZG1010 2 A PZG1010 14

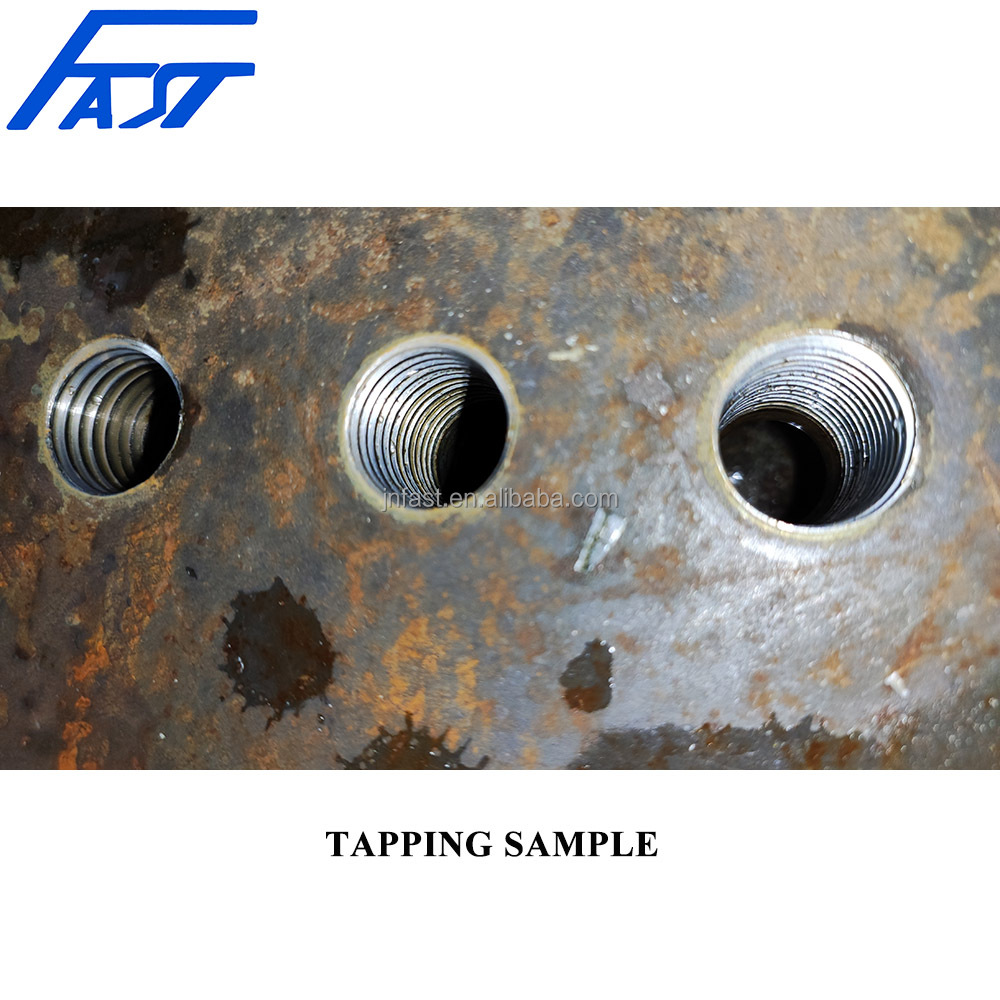

SAMPLES

A PZG1010 16

A PZG1010 9 A PZG1010 16

A PZG1010 15 A PZG1010 12
