Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter
Plates Model PZS1208-12
APPLICATION
This machine is mainly used for drilling and processing filter
plates and sieve plates in papermaking industry, medicine industry,
food industry, chemical industry,etc. Straight holes, step holes,
tapered holes and other holes can be processed on single materials
and composite materials. It can realize automation, high precision,
multiple varieties and mass production.
FEATURES
1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to
ensure the accuracy of the drilling position;
2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth;
3. Linear guide line and ball screw fully protected and not
exposed;
4. Circulating cooling device;
5. Automatic lubrication device & Protection device. All moving (rotating) parts
6. Anti rusty stainless steel guardrail around the workbench;
7. Full digital numerical control system control:
-Chip breaking function; Tool lifting chip removal function;
-Automatically converting CAD graphics into processing programs
function;
- Adjusting the feed and speed according to different apertures,
-The standard numerical control system adopts the German Siemens
numerical control system. It is equipped with a USB interface and
an LCD liquid crystal display. The operation interface has
functions such as human-machine dialogue, error compensation, and
automatic alarm.
-Hole position preview and re-inspection function.
COMPOSITION
| Fixed bed worktable | Movable gantry |
| Vertical sliding plate | Drilling heads |
| Cooling system | Automatic lubrication system |
| Controlling system | |
TECHNICAL DATA
| Model | PZS1208-12 | PZS1508-15 |
| Max. Workpiece Dimension (mm) | 1200*800 | 1500*800 |
| Distance between the bottom of the spindle to work table (mm) | 100~320
| 100~320 |
| Range of Drilling Diameter | Φ3~Φ10 | Φ3~Φ10 |
| Type of Drilling Head | Servo motor Drilling head |
| Drilling Speed (mm/min) | 50~220 (for common steel) 30~120 (for stainless steel plate) |
| Quantity of Drilling Motor | 4 | 5 |
| Drilling Axis | 12 | 15 |
| Morse Taper | 3# | 3# |
| Motor power of Drilling Head (kW) | 2.2 | 2.2 |
| Rotating Speed of Spindle (r/min) | 300~2800 | 300~2800 |
| Vertical Stroke of Z Axis (mm) | 220 | 220 |
| Z Axis Servo Motor Power (kW) | 1.0 | 1.2 |
| Stroke of X Axis (mm) | 800 | 800 |
| X Axis Servo Motor Power (kW) | 1.0 | 1.0 |
| Stroke of Y Axis (mm) | 1200 | 1500 |
| Y Axis Servo Motor Power (kW) | 1.0 | 1.0 |
| Quantity of CNC Axis | 3 | 3 |
| Net Weight (kg) | 3000 | 3500 |
★ All of these models can be customized according to customer
requirements.

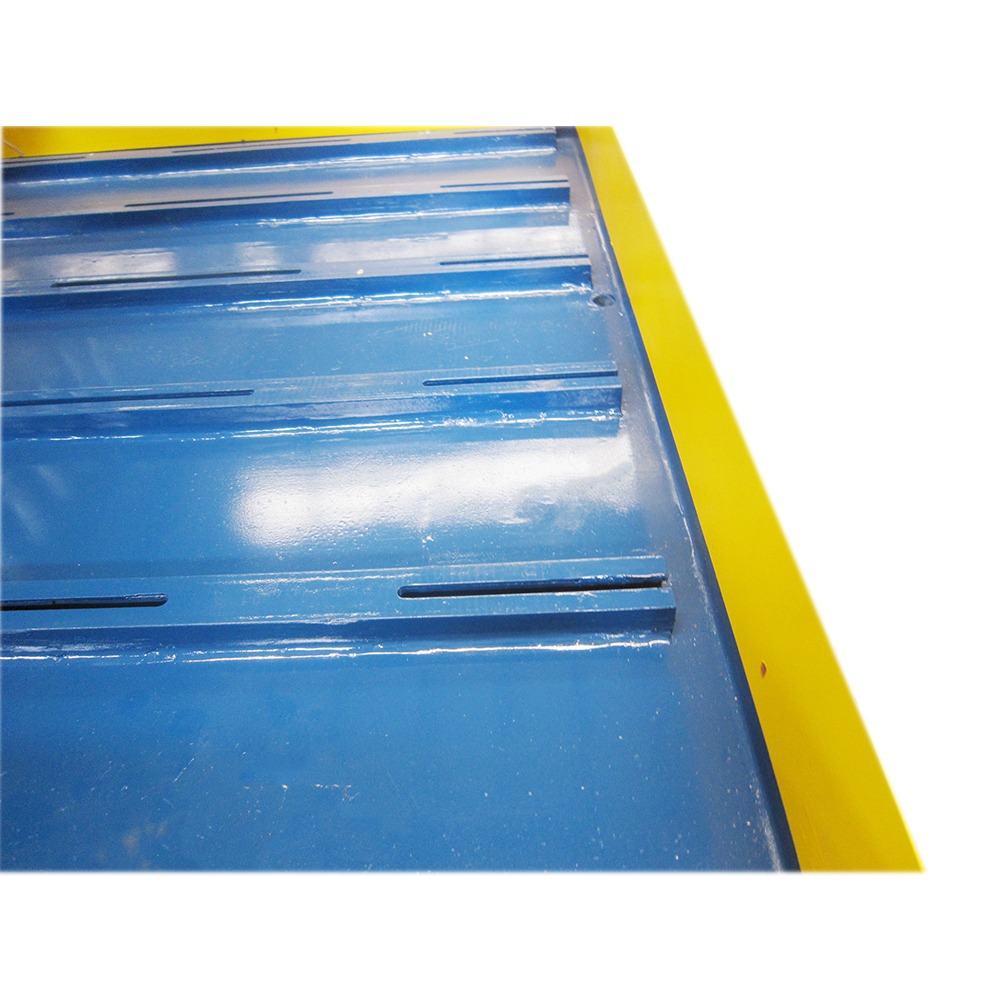

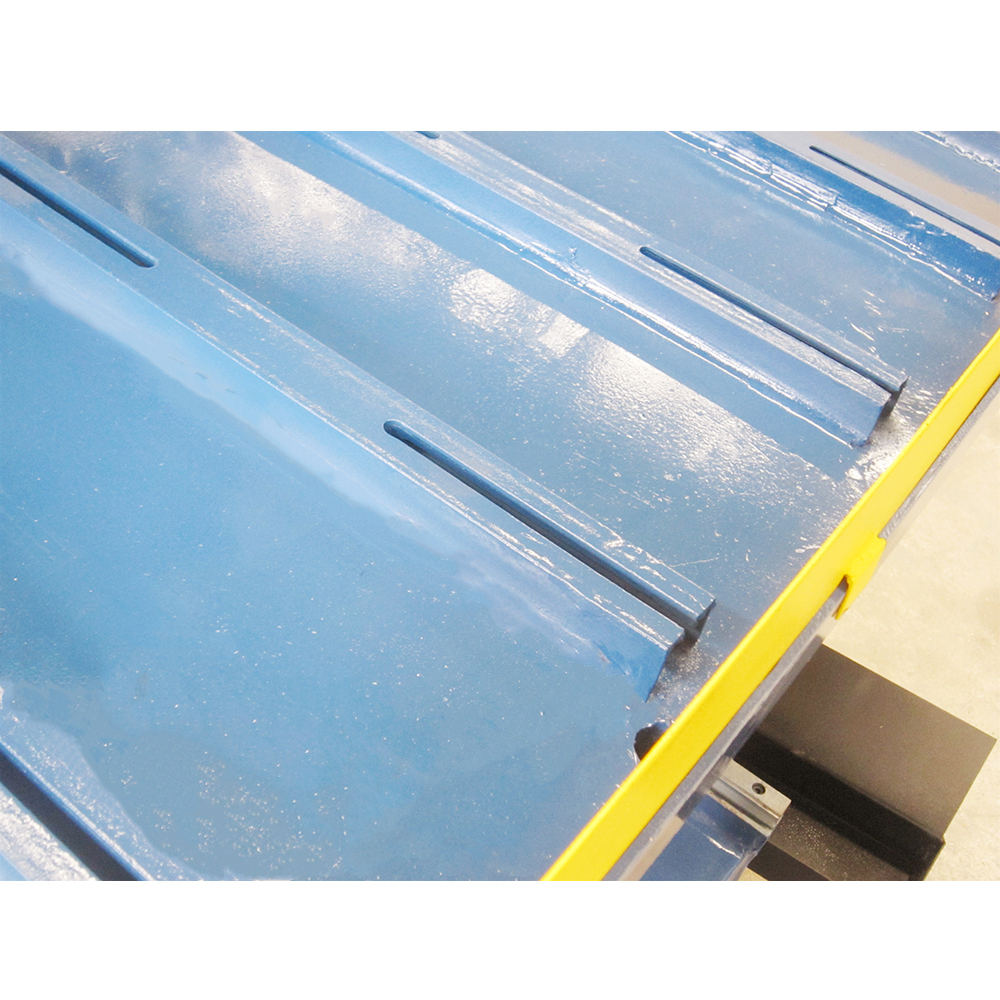

DETAIL IMAGES

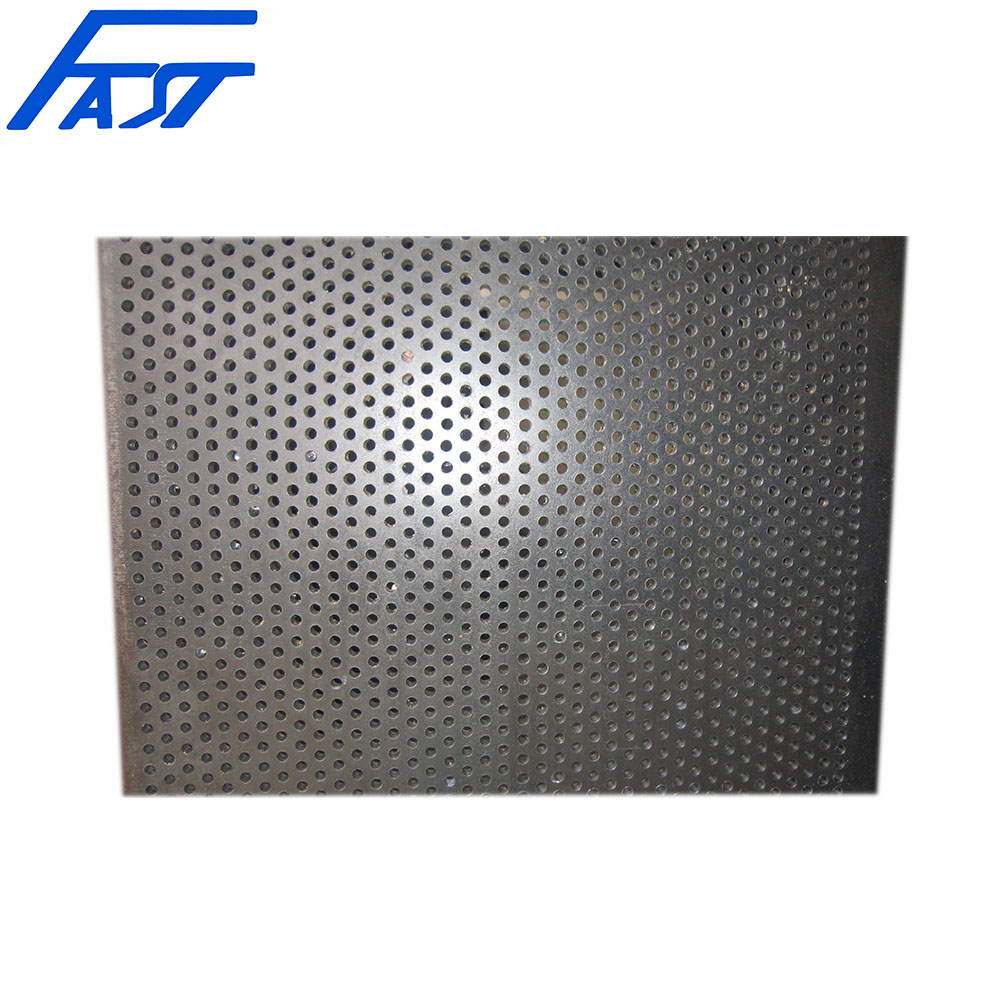

SAMPLES
