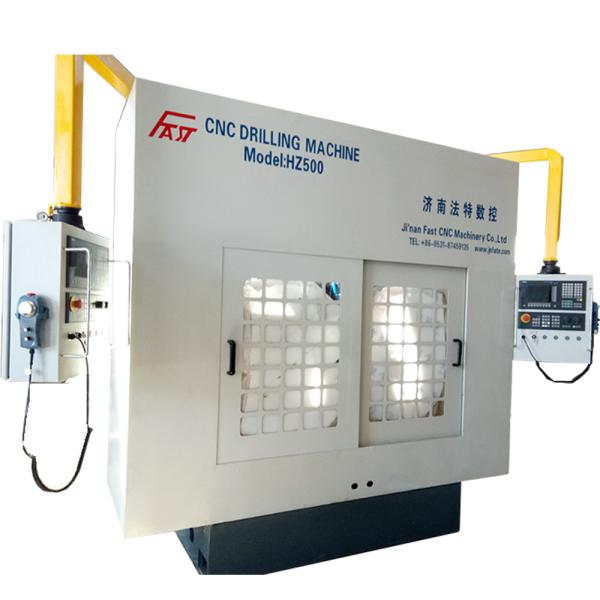

FAST HZ500 Double-Spindle Round Parts Two Station Flange Drilling And Milling Machine For Flange Shaft FLZ500-30-2

Ask Lasest Price
Brand Name :	FAST
Model Number :	HZ500
Certification :	ISO9001
Price :	USD 40000~50000/ Set
Payment Terms :	L/C, T/T
Supply Ability :	300sets/year
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

FAST HZ500 Double-Spindle Round Parts Two Station Flange Drilling And Milling Machine For Flange Shaft FLZ500-30-2

FAST HZ500 Two Station Flange Drilling And Milling Machine For Flange Shaft

APPLICATION

This machine mainly used for high efficiency drilling of flange, round material and circle parts.

FEATURES

It has double spindles, double rotation work table flame drilling machine, the high efficiency flange drilling machine.
Two spindles can drill at the same time, or drill separately.
It can drill through hole or blind hole. Processing of working is controlled by CNC, which is easy to operate. It can realize automation, high precision, mass production.
Operator just needs to input numbers of hole and sets diameter of the holes be drilled in the pitch circle, then this machine can operate automatically.
Very easy to operate, high efficiency, cost worthy machine.
Linear guide rail and precision ball screw driving
Machine has high position and reposition accuracy

MAIN COMPOSITION

Two work tables	Two drilling power heads
Automatic chip removal device	Circulating cooling system
Pneumatic system	Electrical system

TECHNICAL DATA

Item	Name	Specifications
Workpiece	Thickness	Max. 100mm
Workpiece	Diameter Size	≤φ500mm
Spindle	Spindle Taper	Morse 3#
	Drilling Diameter	Φ6~30mm
	Shift Type	Frequency inverter step less speed change
	Rotate Speed	30－1000r/min
	Spindle Stroke	300mm
	Spindle Feeding Speed	0-4000mm/min step less speed regulating
Quantity of CNC Axis		4 Axes
Workholding	Clamping Way	Four-jaw self-centering chuck
Tool Cooling System	Cooling Method	Mist Cooling System
Air pressure	Pressure	0.6MPa(6kgf/cm²)
Motor	Spindle	4 KW×2
	Y and Z axis servo motors	1.2KW×4
	Rotary shaft servo motor	1.5KW×2
Accuracy of Machine	Position Accuracy	≤0.1mm whole length
	Re-Position Accuracy	≤0.06mm whole length
	Run Out of Surface And Side of Spindle	≤0.03mm
Pressure of Lubrication System		1.0MPa
Pressure of Cooling System		0.2MPa
Outline Size	L×W×H	About 1800×1360×2340mm
Weight	Total Weight	About 3000kg
NOTE: Pneumatic system usage:When drilling function provide power,it is cylinder fixed work table. This ensures rotation work table chuck to be in static status.

DETAIL IMAGES

WHY CHOOSE US

COMPANY PROFILE

WORKSHOP

CUSTOMER VISIT

FAQ

CERTIFICATE

PACKING AND SHIPPING
