MP-1B Single Disk Stepless Speed Adjust Metallographic Sample Grind Polish Machine

Ask Lasest Price
Brand Name :	FAST
Model Number :	MP-1B
Certification :	ISO9001
Price :	USD 500~1500/set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	300sets/year
Delivery Time :	5~8days

Add to Cart

Product Details
Company Profile

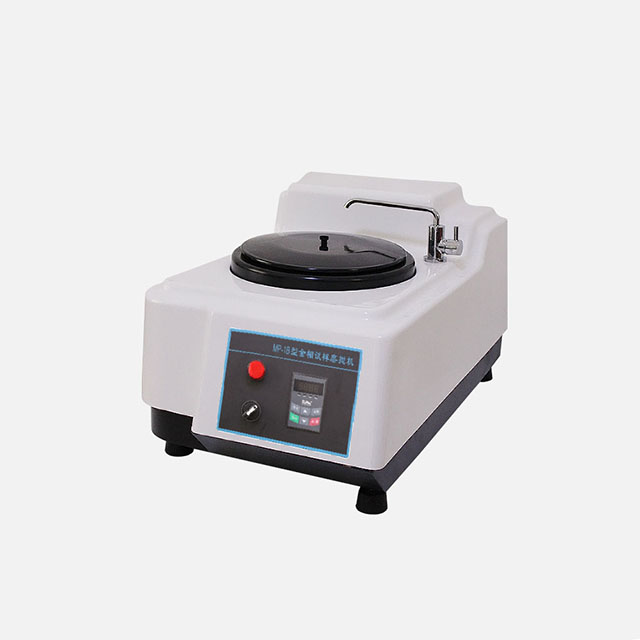

MP-1B Single Disk Stepless Speed Adjust Metallographic Sample Grind Polish Machine

MP-1B Single Disk Metallographic Specimen Grinding and Polishing Machinewith Stepless Speed 50-1000rpm

Application

MP-1B Metallographic Specimen Grinding & Polishing Machine is equipped with single disc and features stepless speed changing grinding and polishing.
The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm.
It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying.
It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Technical Data

Model	MP-1B
Grnding polishing Disk Diameter	200mm (230mm / 250mm can be customized)
Rotating Speed	50-1000rpm (stepless speed)
Motor	250w
Voltage	AC 220V 50HZ
Dimension	400×730×310mm
Net Weight	15kg
