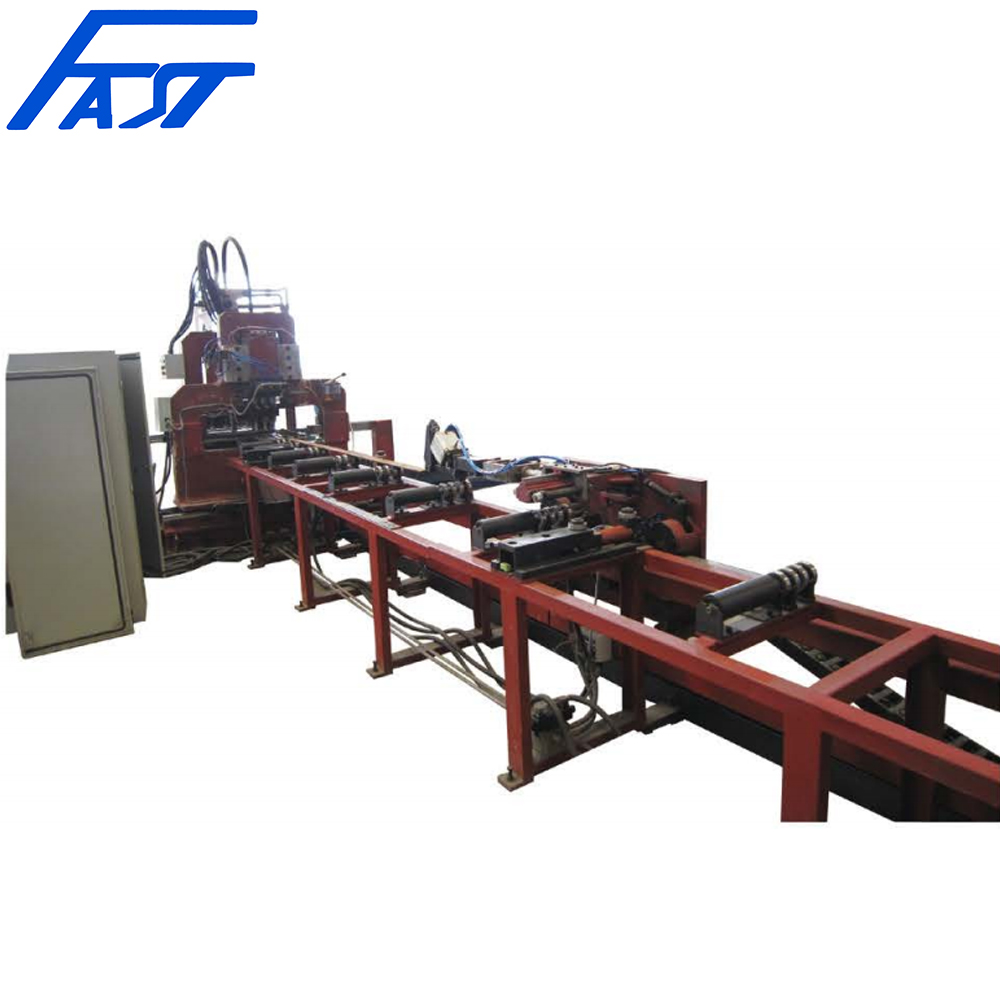

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel
Punching Line,Flat Steel Shearing Line
APPLICATION
This machine is used for automatic punching, cutting and marking of
flat steel.
COMPOSITION
This machine is composed by material platform, lifting loading car,
CNC loading conveyor route, CNC loading conveyor/car, Punching
unit, Shearing unit, Unloading conveyor route, Hydraulic pressure
system, controlling system.
FEATURES:

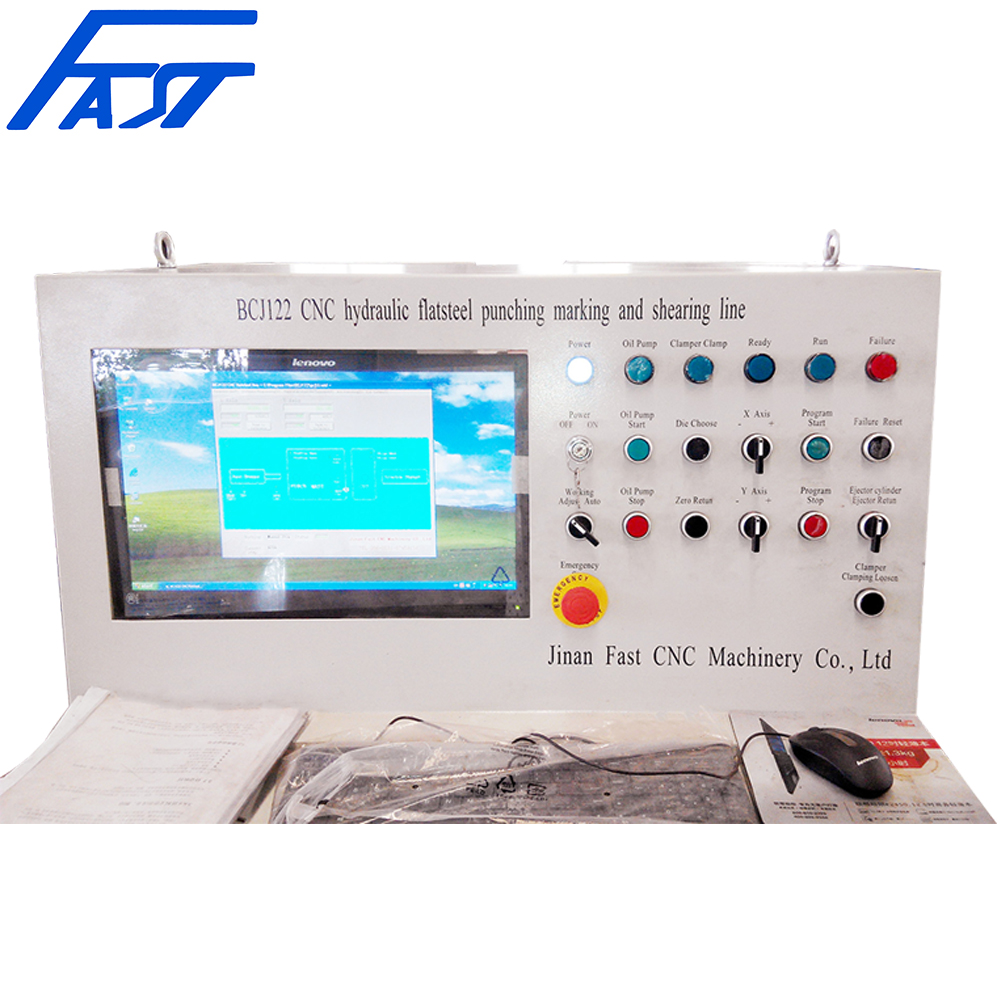

● Controlling system: computer plus PLC controls with functions of
fault diagnosis, testing, alarm.
● Program way:Keyboard and mouse input,USB interface input,network
interface input,CAD sample software port input
● Precision:meets the requirements of GB2694-2003.
● Main electrical components hydraulic and pneumatic valve are of
international well-known brands.
● Integrated with hydraulic, pneumatic and mechanical elements,
which are imported world-class components.
● Displaying the drawing of workpieces.
● Easy programing- can directly use the program data by sample
software.
TECHNICAL DATA
| Model | BCJ80 | BCJ400 | BCJ500 |
| Processing Width of Flat Steel (mm) | 40-80 | 50-400 | 60-500 |
| Max. Cutting Thickness (mm) | 10 | 25 | 15 |
| Max. Punching Diateter (mm) | φ10.5 | φ32 | φ40 |
| Punching Force (kN) | 400 | 1600 | 1200 |
| Quantity of Station | 1 (option 2 or 3) | 1 (option 2 to 6) By Customers Request | 1 (option 2 to 7) By Customers Request |
| Cutting Force (kN) | 400 | 2000 | 1600 |
| Quantity of CNC Axes | 1 | 2 | 2 |
| Feeding Speed (m/min) | 0-60 Stepless Adjustable |
| Average of Cutting Speed (times/min) | 30 | 20 | 25 |
| Total Weight (Ton) | 4 | 13 | 11 |
| Overall Dimension L*W*H (mm) | 16000*2000*2000 | 28000*6000*2600 | 26000*5000*2600 |
★ All of these models can be customized according to customer
requirements.
