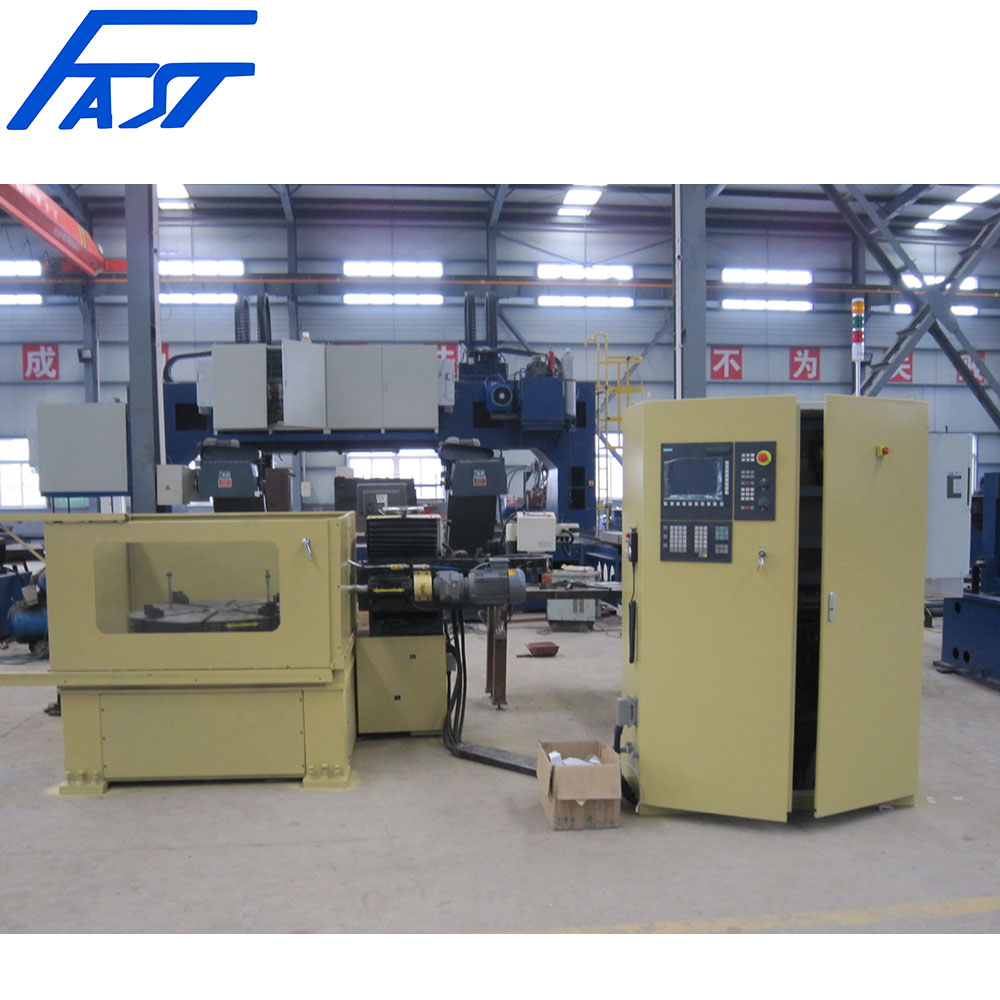

    Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.

    Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces

    APPLICATION
    The machine is used for drilling on ring workpieces.

    FEATURES

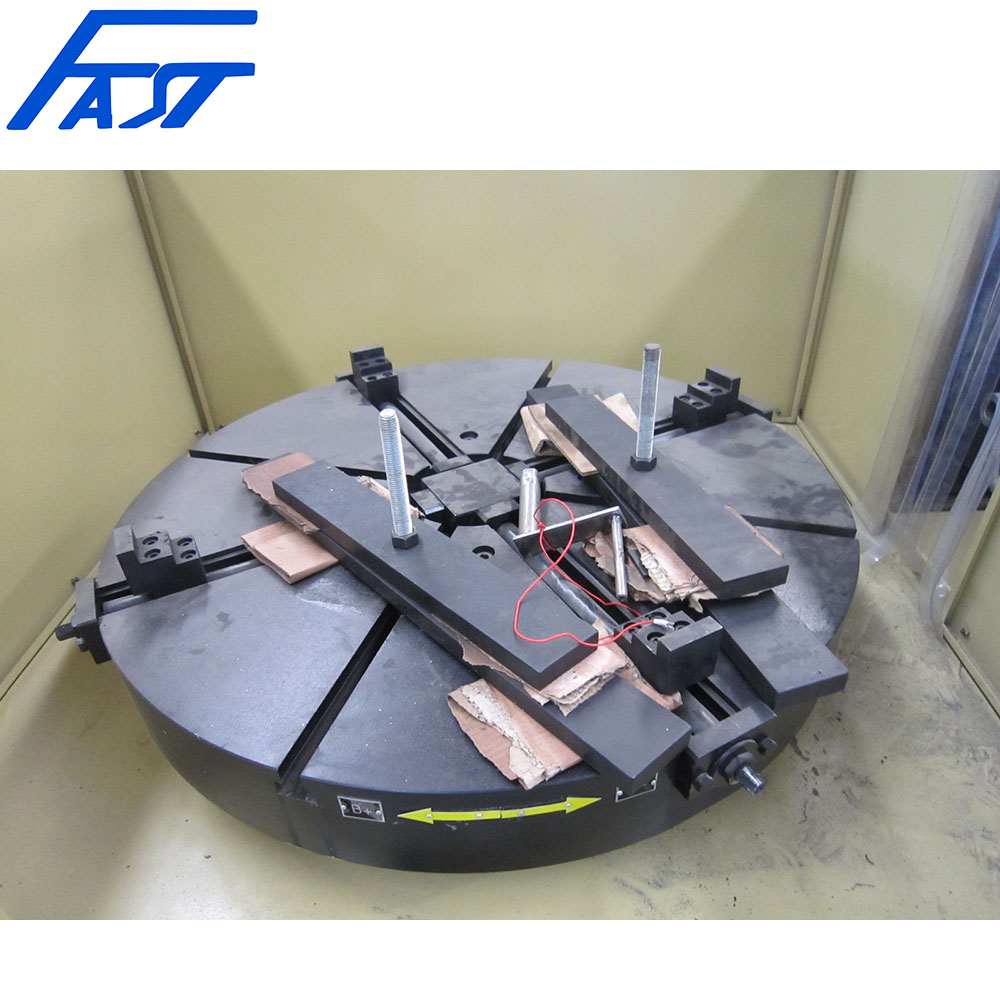

    • This machine has central chucks on work table in horizon position. The chuck has four claws fixed manually.
    • Servomotor.
    • CNC controlling system.
    • Cooling liquid automatic circulation.
    • Only inputting the dimension of the workpiece. It can be used repeatedly.


    TECHNICAL DATA

    ModelHZ900


    Workpiece Dimension (mm)

    Inner Diameter: φ280~φ880
    Outer Diameter: φ300~φ900
    Height: ≤400
    Max. Drilling Diameter (mm)φ30
    Morse TaperMorse #3
    Infeeding Length(mm)320
    Rotation Speed of Spindle (rpm)100~760
    Drilling Speed (mm/min)30~160
    Frequency Converter Stepless Speed Adjustable.
    Spindle Power (kW)3
    Infeeding Servo Motor Power (kW)1.5
    Rotation Servo Motor Power (kW)1.5
    Processing Position AccuracyCircular Direction: ±30


    All of these models can be customized according to customer requirements.
