High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M

    Buy cheap High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M from wholesalers

    Buy cheap High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M from wholesalers
    • Buy cheap High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M from wholesalers
    • Buy cheap High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M from wholesalers
    • Buy cheap High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M from wholesalers
    • Buy cheap High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M from wholesalers

    High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M

    Ask Lasest Price
    Brand Name : FAST CNC
    Model Number : LF60M
    Certification : ISO9001
    Price : USD 27000~37500/Set
    Payment Terms : L/C, T/T
    Supply Ability : 300sets/year
    Delivery Time : 30days
    • Product Details
    • Company Profile

    High Quality 3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M

    3000W CNC Fiber Laser Tube Cutting Machine ISO CNC Laser Pipe Cutter Model LF60M


    ADVANTAGE

    1. Professional pipe cutting machine

    2. The newest pneumatic chuck

    3. Easy to Operate


    TECHNICAL DATA

    MODELLF60M

    Pipe diameter range

    (Diameter of circumscribed circle)

    Φ10~φ210mm
    Max. Pipe length6000mm
    X-axis travel330mm
    Y-axis travel6500mm
    Z-axis travel350mm
    W-axis rotation anglen*360
    W axis maximum speed120RPM
    X/Y axis positioning accuracy±0.05mm
    X/Y axis repeat positioning accuracy±0.03mm
    X axis maximum moving speed40m/min
    Y axis maximum moving speed30m/min
    X/Y maximum acceleration1.0G
    ChuckPneumatic
    Maximum load of chuck200kg 35kg/m
    Guide rail width35MM
    Lubrication typeAutomatic oiling
    Lubrication typeAutomatic oiling
    Power available1000-3000W
    Dimension11900*1880*2260mm
    Total Weight4500kg

    DETAIL IMAGES

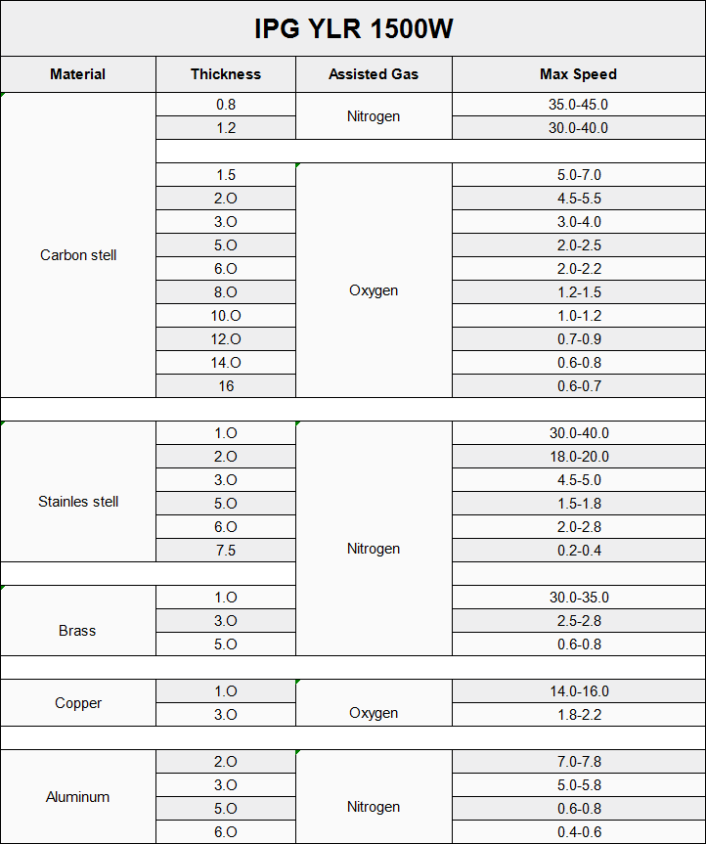

    SAMPLES



    WHY CHOOSE US

    COMPANY PROFILE

    WORKSHOP

    CUSTOMER VISIT

    FAQ

    CERTIFICATE

    PACKING AND SHIPPING
