    Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine

    Hydraulic Linking and Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine


    APPLICATION

    The machine is used for coiling or bending, pressing & linking of formed steel pipes in order to weld steel pipes easily. Also, it is used for linking and welding of round pipes, taper pipes and prism pipes. The machine has wide application in the petrochemical industry , electric power industry , shipbuilding industry and chemical industry, etc.


    DETAILS

    ● This machine has main-cylinder on the top and equips one clamping cylinder on both sides. The clamping cylinder can go up and down. This can link various steel pipe with diameter between Ø500mm ~Ø1600mm.

    ● V-type worktable.

    ● Electric driving roller in the front and back of the machine. This dismisses the labors.

    ● The machine can straighten steel pipes by adding supports.

    ● Machine Body is A closed-frame Structure.


    TECHNICAL DATA

    ModelXH150
    Pressure of Upper Cylinder (kN)1000/2500 (Used for alignment)
    Stroke of Upper Cylinder (mm)500
    Pressure of Side Cylinder (kN)250
    Stroke of Side Sylinder (mm)450
    Scope of Steelpipe (mm)Φ500~Φ1500
    Up & Down Position of Side CylinderAuto adjustment
    Adjustable Stroke (mm)600
    Adjustable Way of Steelpipe (mm)Manual or mechanical
    Total Power of Motor (kW)11/18.5
    Overall dimensions L×W×H (m)28×6×6

    All of these models can be customized according to customer requirements.

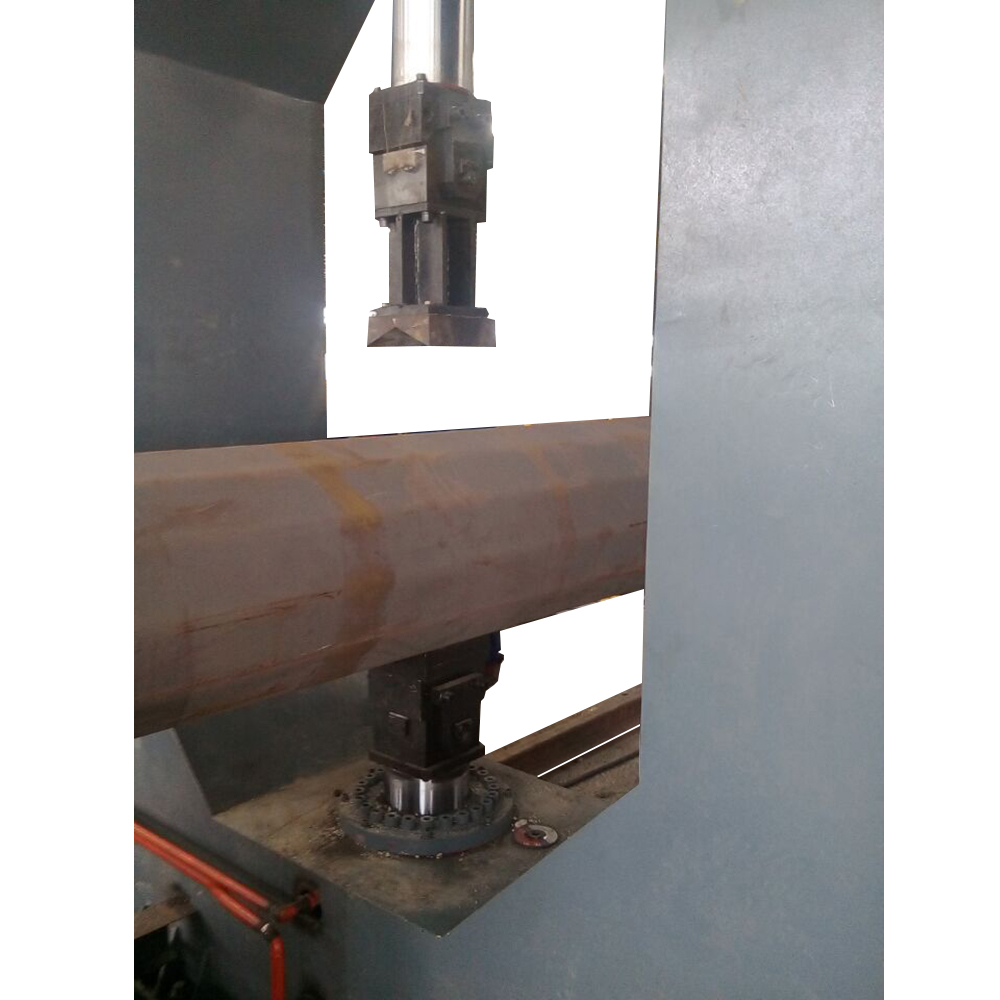

    DETAIL IMAGES
