    China Atc Wood Cnc Nesting Machine 3d Wood Carving Woodworking Machinery

    Ask Lasest Price
    Brand Name : FAST
    Model Number : 2040C
    Certification : ISO9001 CE
    Price : USD 15000~17000/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300sets/year
    Delivery Time : 30days
    MOQ : 1 SET
    • Product Details
    • Company Profile

    China Atc Wood Cnc Nesting Machine 3d Wood Carving Woodworking Machinery

    Automatic Cutting CNC Engraving Machine FE2-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

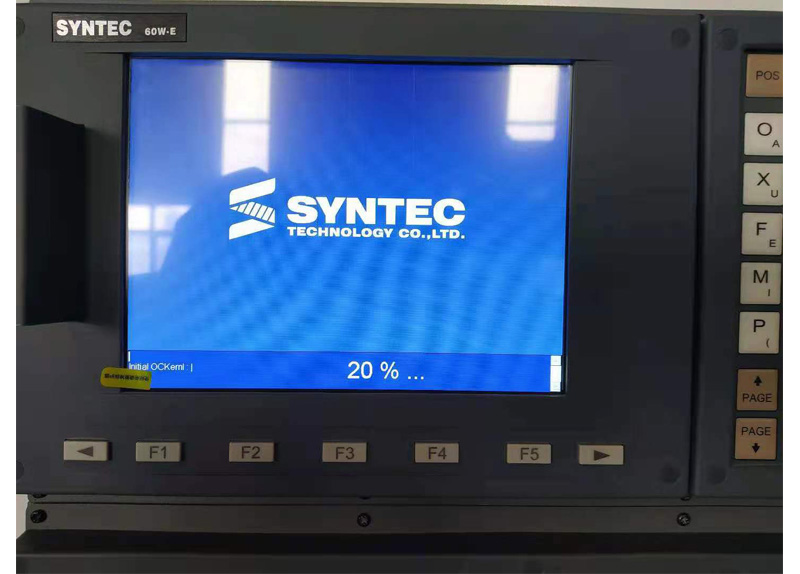

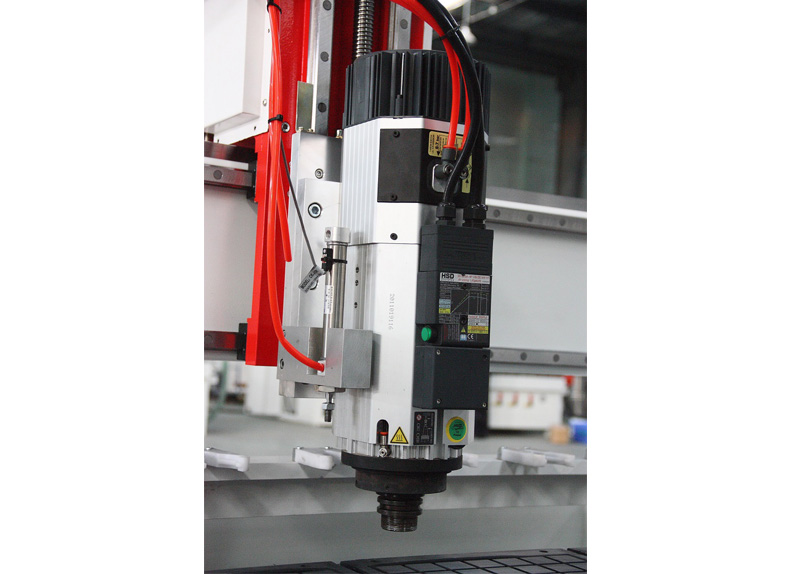

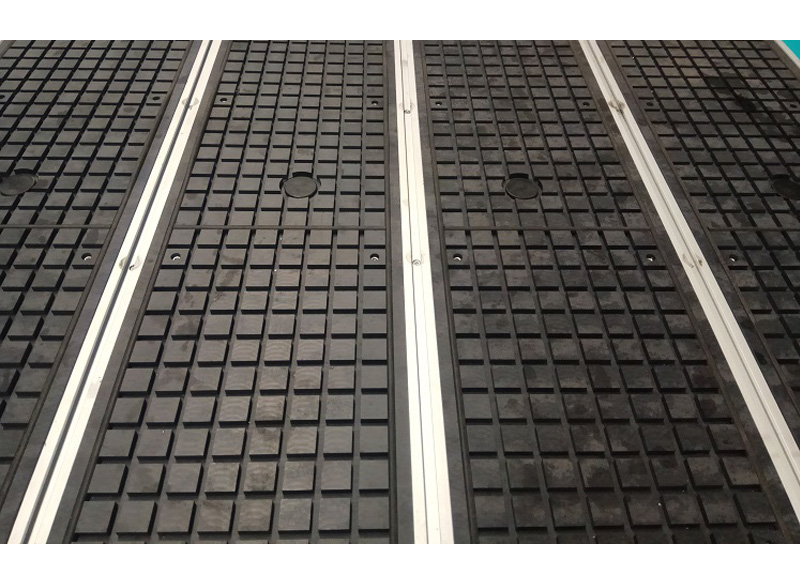

    High-performance all-round machinery with extraordinary value, but at a very economical price. With linear tool changer, constructed with world-class components, consistent high performance.Featuring Italian high frequency air-cooling electronic spindle and world-class servo motor and driving system.Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably accommodating all sizes of work piece.Syntec controller—enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.


    APPLICATIONS

    • Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture,panel wood furniture, windows, tables and chairs, etc.

    • Other wooden products: stereo box, computer desk, musical instruments, etc.

    • Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.

    • Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.

    TECHNICAL DATA

    SERIESF2-1325CF2-1530CF2-2040C/2050C/2060C
    Travelling area1260*2500*200/300mm1570*3100*200/300mm2100*4020*200/300mm
    Working area1240*2480**180/280mm1550*3080*180/280mm2050*4000*180/280mm
    Table size1230*2500mm1560*3100mm2050*4020mm
    Optional working length3080/5000/6000mm
    TransmissionX/Y rack and pinion drive, Z ball screw drive
    Table structureT-slot vacuum
    Spindle power9.6KW
    Spindle speed24000r/min
    Travelling speed40m/min
    Working speed18m/min
    Driving systemDelta
    VoltageAC380/3PH/50HZ
    ControllerSYNTEC / OSAI

    DETAIL IMAGES


    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020CAutomatic Cutting CNC Engraving Machine FE-4020C

    Automatic Cutting CNC Engraving Machine FE-4020C
