Modern FAST CNC Milling Drilling CNC Drilling Machine For Tube Sheet CNC Drilling Machine Steel Drilling Machine

Modern FAST CNC Milling Drilling CNC Drilling Machine For Tube Sheet

APPLICATION

The machine is mainly used for drilling tubesheets. Internal cooling high-speed drilling with carbide milling cutters or external cooling drilling with ordinary high-speed steel twist drills, end mills can also be used to mill grooves and special tools are used to mill the expansion grooves of the tube holes of the tubesheet. The machining process of the machine is digitally controlled. The operation is very convenient. It can realize automation, high precision, multi-variety and mass production.

TECHNICAL DATA

Round pipe/bar diameter		20mm-80mm
Max pipe/bar length		2000/3000/4000mm
table size		1000*2000mm(3000mm/4000mm)
Vertical Drilling Head	Quantity	1
	Spindle Diameter(mm)	BT40
	Drilling Diameter(mm)	∅2-∅40
	Spindle Speed(r/min)	30-3000(stepless speed)
	Spindle Motor Power(kw)	3.7/5.5
	Spindle Nose To Chuck center Distance	150-400mm
Rotation axis(X-aixs)	Round bar diameter	20mm-80mm
	Moving Speed(m/min)	0-9
	Servo Motor Power(w)	2.3*1
	Drive mode	Guided by linear rolling guide;driven by AC servo motor and chuck
Pow Head Lateral Movement(Y Axis)	Max.Stroke(mm)	4000mm
	Moving Speed(m/min)	0-8
	Servo Motor Power(kw)	2.3*1
	Drive mode	Guided by linear rolling guide;driven by AC servo motor and Germany WMH rack
Vertical Ram Feed Movement(Z-aixs)	Max.Stroke(mm)	250
	Moving Speed(m/min)	0-8
	Servo Motor Power(kw)	1×2.3(Brake motor)
Positioning Accuracy(X/Y/Z)		±0.05/300mm
Repeat Positioning Accuracy(X/Y/Z)		±0.025/300mm

DETAIL IMAGES

Modern FAST CNC Milling Drilling CNC Drilling Machine For Tube Sheet CNC Drilling Machine Steel Drilling Machine

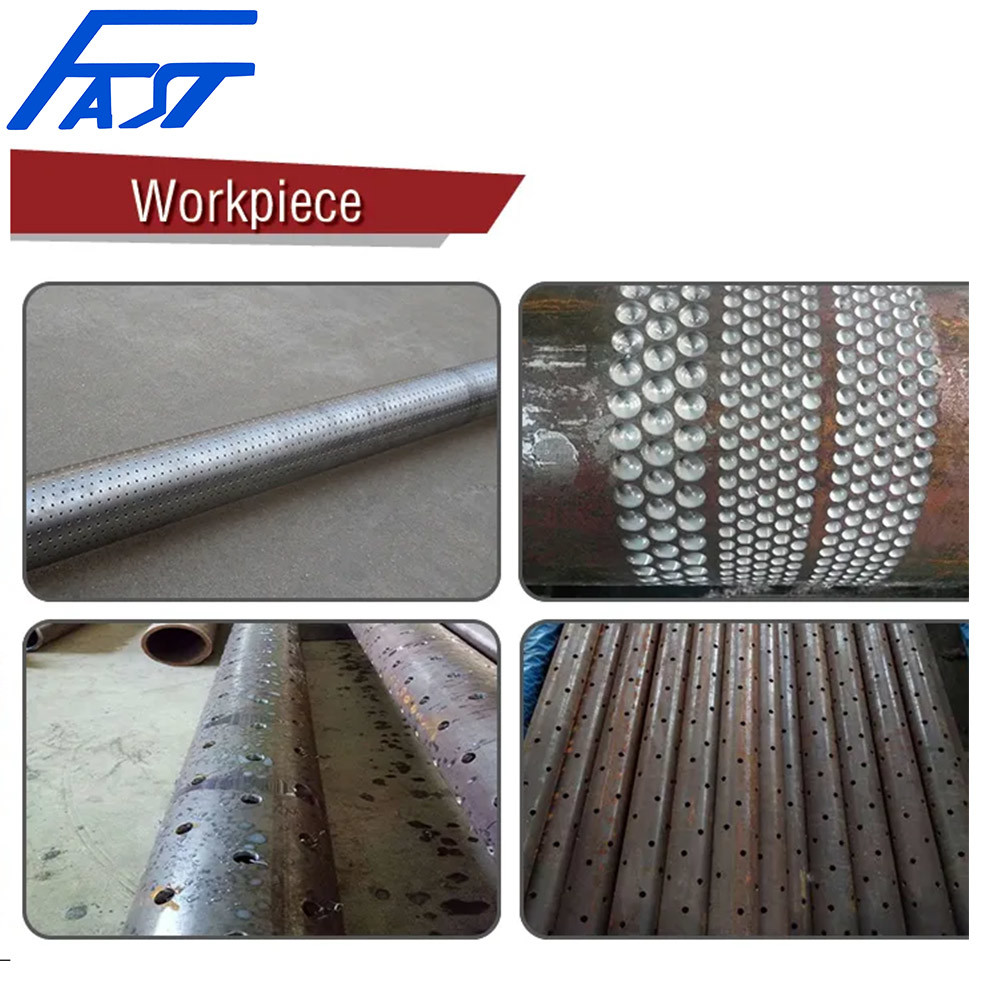

SAMPLE

Modern FAST CNC Milling Drilling CNC Drilling Machine For Tube Sheet CNC Drilling Machine Steel Drilling Machine
