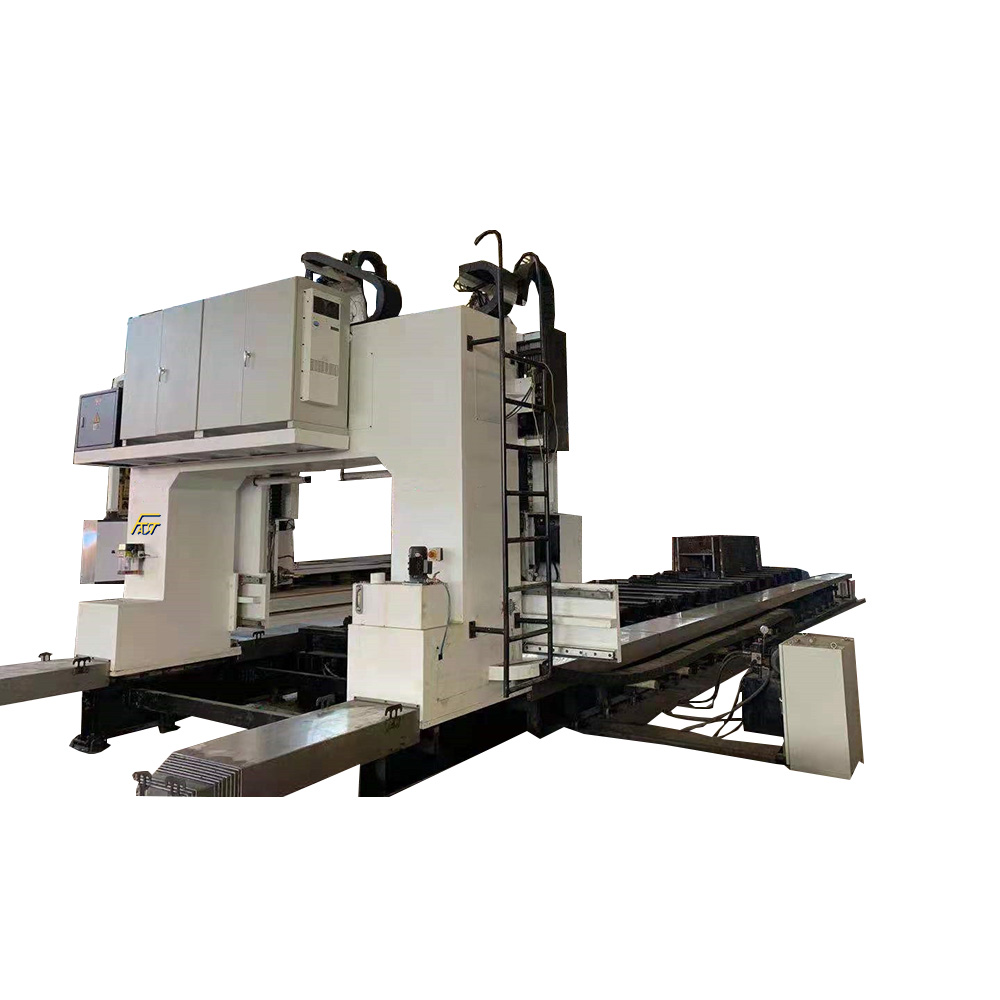

    Customized High-Speed Beam Drilling Machine Gantry Movable CNC Drilling &Milling Machine

    Customized High-speed Beam Drilling Machine Gantry Movable CNC Drilling &Milling Machine

    APPLICATION

    This machine is mainly used for drilling and milling of groove beam, H-beam and other structural parts. Three sides can be processed simultaneously, and one side can be processed.

    If requested, tapping can be added and a knife library is also available.


    MODEL EXPLAINATION

    SDM---Section Steel Drilling and Milling

    360: Width of section steel is 360mm

    200:Height of section steel is 200mm

    10000: Section steel length 10000mm


    TECHNICAL DATA

    SPECIFICATIONUNITPARAMETERS
    Worktable

    Effective table size


    mm360×10000

    Can pass workpiece width


    mm560

    Load capacity


    t10

    Upper power head unit


    Spindle specification


    BT40 precision high speed spindle

    Tool cooling mode


    Central spray internal cooling + gas-liquid external cooling
    Loosing tool methodPneumatic loosing tool

    Spindle servo motor power


    kW15

    Range of spindle speed


    r/min0-3000

    Left and right power head units


    Spindle specificationBT40 precision high speed spindle
    Tool cooling modeBT40 precision high speed spindle
    Loosing tool methodPneumatic loosing tool
    Spindle servo motor powerkW15
    Range of spindle speedr/min0-3000

    Processing capability


    Drillingmm

    φ30 Carbide drill


    mmφ40 twist drill
    Millingmmφ30 milling tool
    TappingM20(Optional Item)
    Automatic tool changer3 tool manazine, each magazine has 4 tools (optional)

    CNC axes number and servo motor


    CNC Axes

    8 axes(Withour tool hoder)

    12 axes

    (With auto tool holder)


    Spindle servo motor power


    kW15×3

    The spindle feeds the servo motor power


    kW

    2KW×3

    (With precision reducer)

    Gantry and power head move servo motor powerkW

    2KW×5

    (With precision reducer)

    Tool magazion servo motor powerkW

    0.6KW

    One rotary tool magazine is used, 2 inline tool magazine are not used

    Controlling systemControlling system

    Computer+PLC

    (Without Tapping)

    tandard CNC system

    (with tapping)

    Cooling systemCooling method(See power head unit description)
    Air source pressure (supplied by user)mPa0.6
    Chip removal systemPower of a screw chip drainerkW1.1(Optional Item)
    Machine total powerkWabout 53
    Total weightTabout 15
    Outline demensionL*W*Hmm

    About 11000×2000×3000
