CNC H I Beam Drilling Sawing Line for Sale CNC H Beam Production Line CNC H Beam Sawing Drilling Line

CNC H Beam Production Line CNC H Beam Sawing Drilling Line

1. APPLICATION
This machine is mainly used for drilling H-beam, channel steel and box beam, and is widely used in steel fabrication buildings, bridges, three-dimensional garages and other industries. The 7-axis CNC section steel 3D drilling machine adopts seven servo motors to realize drilling positioning in two vertical directions, one horizontal direction and one longitudinal direction and servo feeding of three spindles. There are 3 drilling surfaces, each with 1 drilling spindle, and 1 drilling spindle on each surface is driven by a frequency conversion motor. The drilling spindle is a servo feeding drilling spindle. When the hole diameter of the workpiece is 1, the holes on the three sides of the workpiece can be processed after passing through the machine at one time, with high efficiency and high hole position accuracy.
It is an indispensable machine to ensure quality in the steel fabrication manufacturing industry.

2.TECHNICAL DATA

Name		Unit		Specifications
H-beam: Max. height × Max. width (Flange width)		mm		650×300
H-beam: Min. height × Min. width (Flange width)		mm		150×100
Automatic feed conveyor length		mm		12000
Max. workpiece web thickness		mm		≤25
Maximum workpiece weight		kg		2000
Number of drilling spindles		PCS		3
Drilling Diameter Range		mm		φ5-30
Upper unit spindle technical parameters	Number of upper spindles	KW		11
	Spindle rated torque	Nm		140
	Spindle speed range	r/min		0～3000
	Axial feed speed	mm/min		0～4000
	Spindle feed stroke	mm		400
	Spindle centerline lateral movement range	mm		30～600
Left unit spindle technical parameters (reference side)	Drilling spindle power	KW		11KW
	Spindle rated torque	Nm		140
	Spindle speed range	r/min		0～3000
	Axial feed speed	mm/min		0～4000
	Spindle feed stroke	mm		200
	The moving range of the spindle center line up and down	mm		20～270
Right unit spindle technical parameters	Drilling spindle power	KW		11KW
	Spindle rated torque	Nm		140
	Spindle speed range	r/min		0～3000
	Axial feed speed	mm/min		0～4000
	Spindle feed stroke	mm		500
	The moving range of the spindle center line up and down	mm		20～270
Spindle taper hole				BT40 (Pneumatic loosening knife)
Hole spacing error in hole group		mm		≤±0.2
Adjacent hole group hole spacing error		mm		±0.2
Bit cooling method		spray cooling, external cooling
Up and down (vertical) stroke of gripping arm		mm	100(50-150)
Left and right (lateral) stroke of gripper arm		mm	150(50-300)
Gripper arm movement (forward direction) stroke		mm	12000
Rack and pinion drive servo motor power		KW	5
Outline dimensions of feeding channel (L× W × H)		mm		14000×900×1630
Feed channel length		mm		8000
total power		KW		About 50
Dimensions of the production line L×W×H		mm		Abou 24000×3500×3120
Automatic conversion of CAD drawings into machining programs

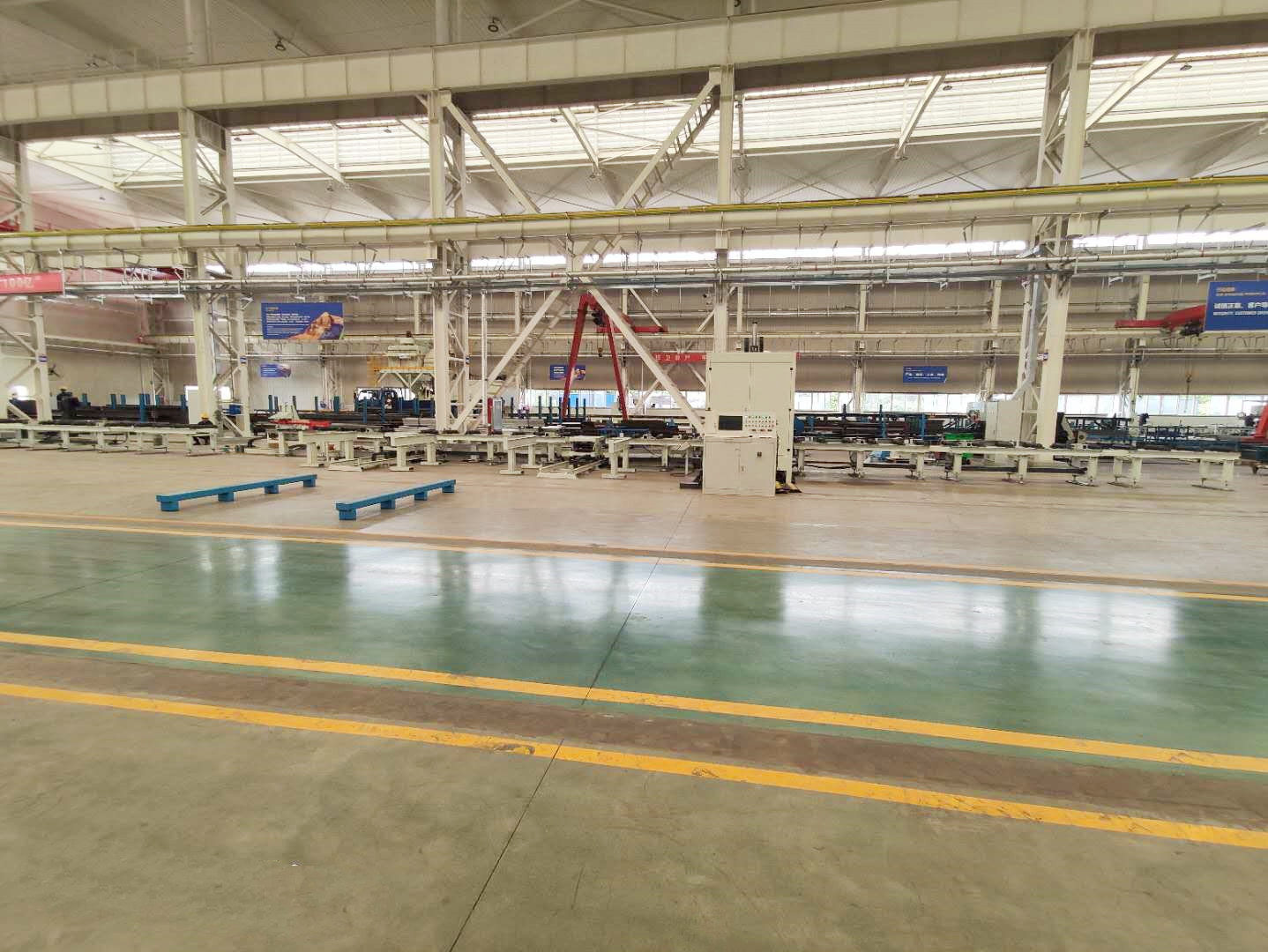

3. DETAIL PICTURES
