CNC H Beam Cutting Drilling Production Line for Steel Structure CNC Beam Drilling Machine 1000/1250

CNC H Beam Cutting Drilling Production Line for Steel Structure

APPLICATION

This machine is special equipment for drilling H-beam, channel steel , box beam and angle steel in steel structure, bridge, three-dimensional parking garage, petroleum platform and other industries.

FEATURES

Integrated machine with mechanical, electrical and hydraulic elements;
This machine has three power heads. All holes on the three sides of the workpiece can be processed in one pass;
There is no need to set thickness of the workpiece and length of the drill bit. The fast forward and work forward conversion are automatically carried out. The processing efficiency is high;
The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
The main electrical control components and hydraulic and pneumatic components are imported accessories;
Providing G-code software program that can directly convert CAD graphics into executable machine ;
Graph display of processed parts;
With fault self-diagnosis function.

COMPOSITION

Horizontal storage rack	Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway)
CNC Infeeding Trolley	CNC trolley running track
Loading side power raceway	Three-dimensional drilling unit
Offloading side power raceway	Side pusher system
Automatic chip conveyor	Mist cooling system
Electric control cabinet	Hydraulic station

TECHNICAL DATA

Model	SWZ700-3	SWZ1000-3	SWZ1250-3
H-beam Max. Web Weight *Max. Flange Height (mm)	700*400	1000*500	1250*600
H-beam Min. Web Weight *Min. Flange Height (mm)	150*100
Automatic Feeding Length (mm)	2000~14000
Max. Web Thickness (mm)	≤60
Max. Drilling Diameter (mm)	Φ40
Feeding Speed (mm/min)	20~200
NO. of Spindle	3
Rotation Range of Each Spindle (r/min)	100~700
Spindle Type	Morse 4#
No. of CNC Axis	4
Upper Spindle Movement Range (mm)	40~660	40~960	40~1160
Left and Right Spindle movement range (mm)	30~370	30~470	30~570
Marking Function(Optional) Marking Number	36
Character Size (mm)	141020
Total Power (kW)	30	31	34
Overall Dimension LWH (m)	294.23.1	334.53.1	3453.1

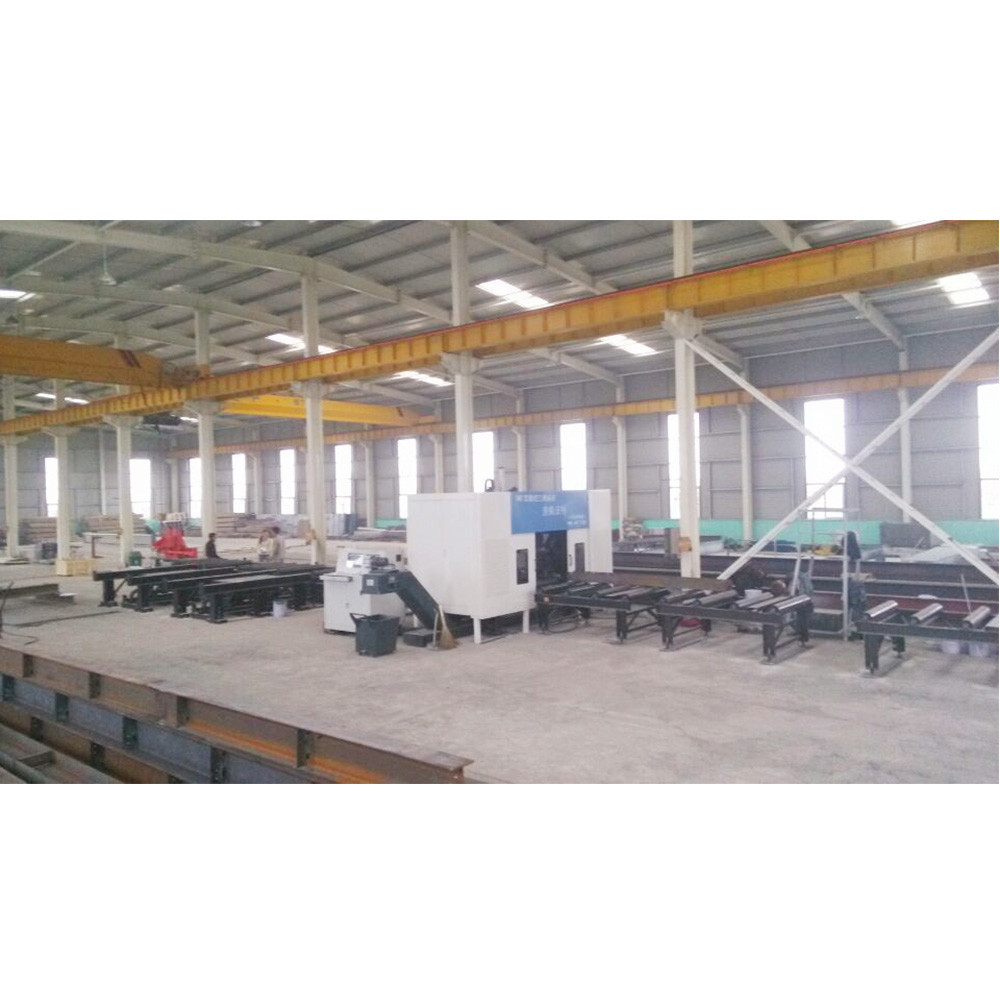

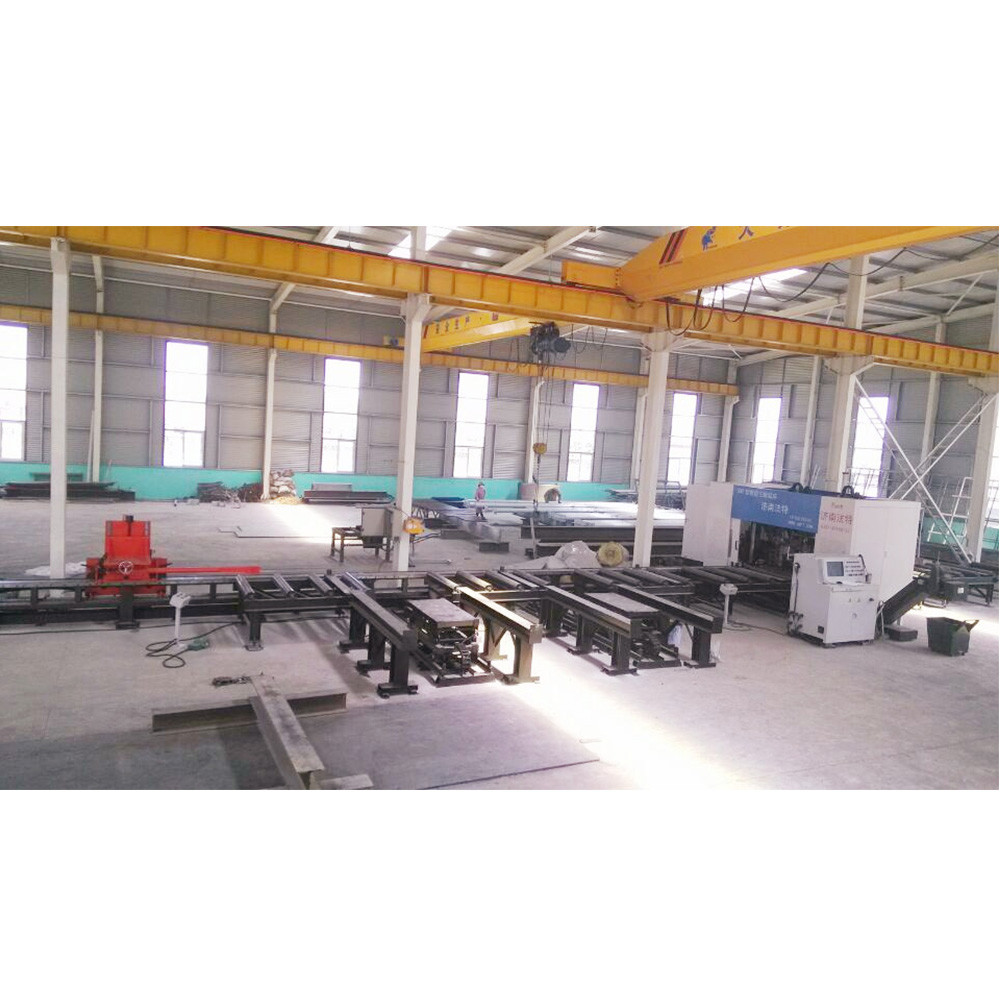

DETAIL IMAGES

CNC H Beam Cutting Drilling Production Line for Steel Structure CNC Beam Drilling Machine 1000/1250

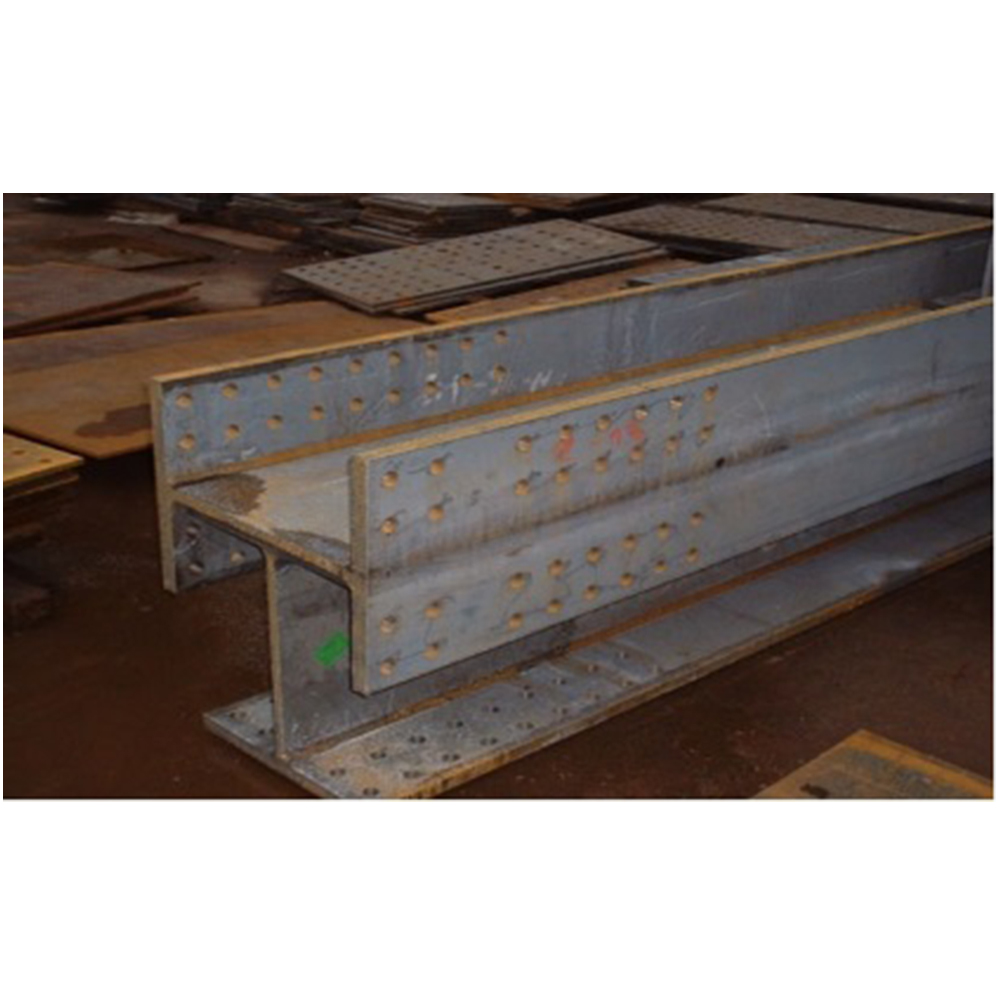

SAMPLES
